Automatic Quality Inspection machine Rejection machine of unqualified products Quality Inspection system

Short Description:

Automatic Quality Inspection machine Rejection machine of unqualified products Quality Inspection system is for quality inspection points on corrugated boxes, color boxes, large sheets of coding.

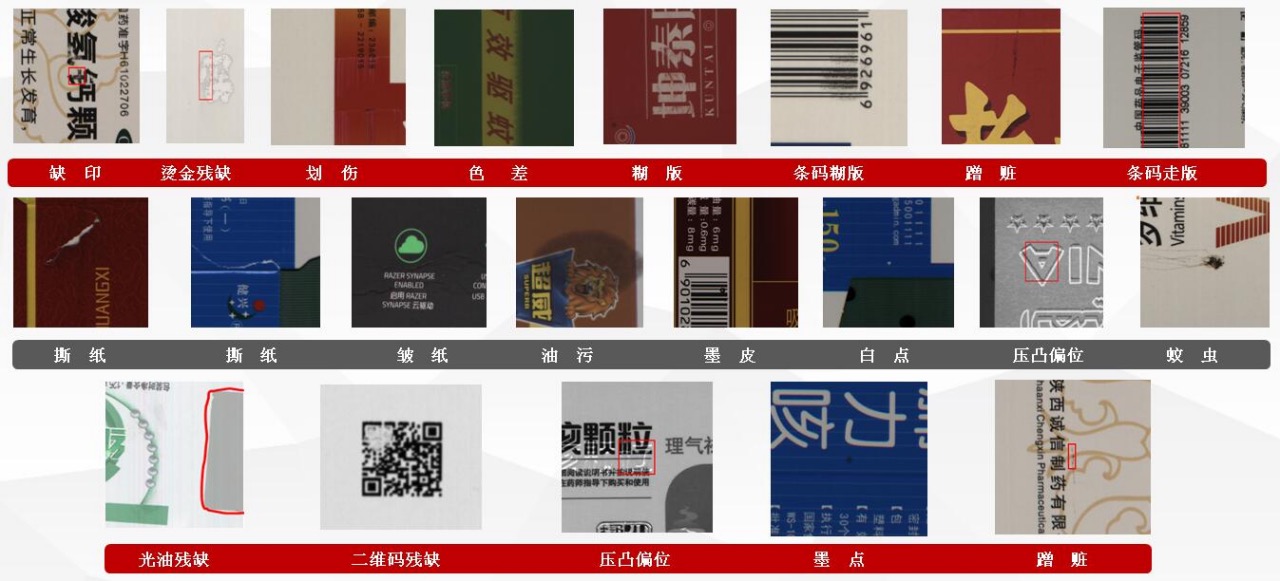

This machine is independently developed by our company and has applied for a national patent. It is mainly suitable for 1mm-8mm, Watermarked corrugated cardboard, carton, jade printing, offset printing, color mounting corrugated color box, color box, paper feeding, spray printing, variable code and detection of product surface defects; such as: ink dots (blocks), lack of printing, light printing, overprinting, color difference , Paste, dirty spots, holes, wrinkles, foreign objects, die cutting position and other typical printing defects.

Brand: GOJON

Size: 1300,1450

Production place: QIngdao China

Delivery date: 2-3months

Supply capacity: 10sets/month

Send email to us

Product Detail

Product Tags

To get more details about Carton Box Making Machine, pls visit here

In addition, the unqualified products after inspection can be rejected online, and the qualified cardboard, color box and color box can be automatically counted and stacked; the whole machine has more diverse changes, simple debugging, simple and convenient operation.

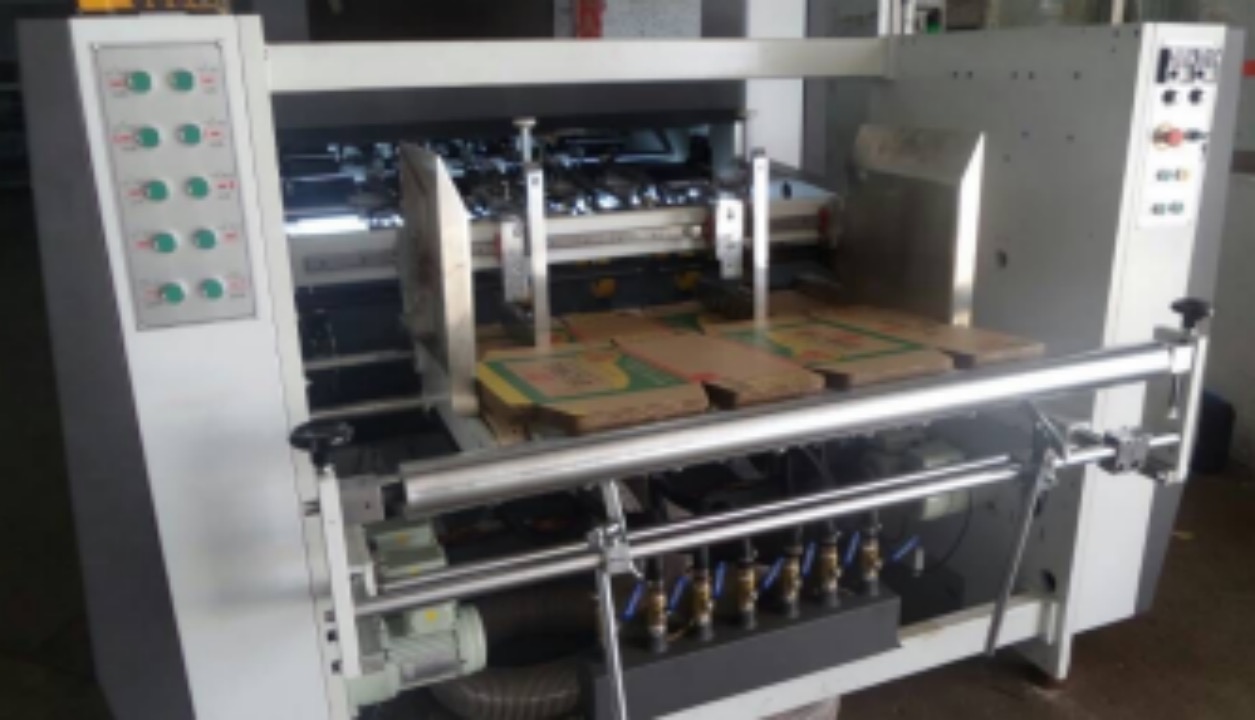

This machine is equipped with unique feeder bottom suction and bottom suction belt paper feeding. It adopts PLC operating system, and the transmission structure adopts single-group independent motor transmission, low noise, durable, and the upper belt pressure is pneumatically adjusted. Equipped with a high-power motor to complete the electric board adjustment, reduce loss, reduce labor, ensure product quality, and high efficiency, etc.

For carton and color box printing QR code and serial code solutions, they are installed on a dedicated mechanical platform. The printing system provides 54mm UV inkjet printers. The coding system prints UV inks.

Technical Parameters

Applicable paper quality: used for 1mm-8mm, three-layer, five-layer watermarked corrugated cardboard, offset printing color mounted corrugated cardboard; paper feeding method: correct and automatic continuous feeding

Mechanical speed (MAX): 160 m/min

Paper feeding range: 400-1400mm

Mechanical size: (L*W*H): 14000 mm*2310 mm*2135 mm

Max.product: 1400mm (transverse) * 1000mm (moving direction)

Min product：400 mm (transverse) * 400mm (moving direction)

Total weight (approximately): 10.5T

Maximum power: about 30KW (excluding air compressor)

Flatness: slightly warped (the height of corner warping is not more than 5mm);
