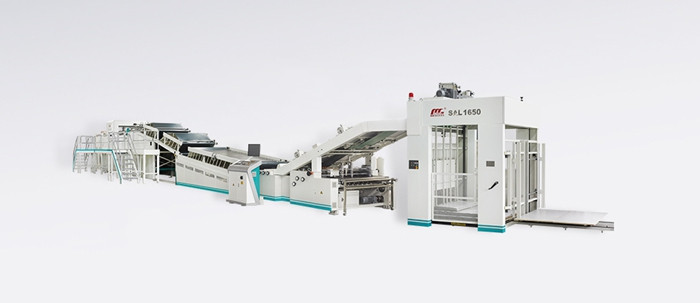

LS Series inline high speed laminator and stacker
To get more details about Single Facer Laminating Machine, pls visit here.
Technical Specification
- Top sheet and bottom sheet synchronous traversing;
- Automatically top sheets - bottom sheets inspecting-aligning servo-controlled system (patented);
- Vacuum suction belts for entire transportation process;
- Synonymous distribution valve;
- Elevating platform of front feeding device;
- Multi-function holding frame for different paperboard;
- Glue recycling system;
- Double direction pushing side register;
- Selectable automatically/manually paperboard receiving function.
Optional Function
- Non-stop top sheets feeding function;
- Pressing feeding device;
- Pressure control for press section;
- Automatically stack outputting device;
- Video monitoring for main operating position.
| Model | LS1650 | LS1450 | LS1300 |
| Max.Laminating machine(mm) | 1650x1650 | 1450x1450 | 1300x1300 |
| Min.Laminating machine(mm) | 400x400 | 400x400 | 400x400 |
| Max receiving size | 1650x1650 | 1450x1450 | 1300x1300 |
| Min receiving size | 500x500 | 500x500 | 500x500 |
| Weight of top sheet(g/m2) | 200-450 | 200-450 | 200-450 |
| Suitable bottom sheet(mm) | 0.5～12 | 0.5～12 | 0.5～12 |
| Laminating accuracy(mm) | +/-1 | +/-1 | +/-1 |
| Max height of stacking(mm) | 1800 | 1800 | 1800 |
| Air consume(L/min) | 50 | 50 | 50 |
| Top speed(P/H) | 12000 | 12000 | 12000 |
| Total power(KW) | 38 | 36 | 36 |
| Machine size(mm) | 32000x5300x3700 | 32000x5100x3700 | 30000x5100x3700 |
| Total weight(kg) | 23400 | 22500 | 20900 |
FAQ
Q1. Is this offline or inlinelaminator? What's the difference compated to the separated laminator?
A:This is our offline lamanitor, but integrated laminator and stacker, it has high speed and automatical function. If you need the inline type,please check our SFL series Single facer laminating smart line,which is inline type laminator. We can manufacture both complete and half line.
Q2: What about your after-sale service and training?
A: If you purchase our machine, we could dispatch the engineer to your facotry to install the machine and train your operator how to adjust and maintain the machine.
Q3. What is your Warranty terms?
A:We will supply replacement of parts with the machine, and machine warranty would be 12 month starting from the machine BL date. Extended warranty is available at the time of purchase, please contact us for details.
Q4. What if I did not find the model that I am looking for?
A: Please contact us freely, we could do customized model of the laminator.
Q5. What about the delivery and the packaging?
A:The delivery time is about 2-3month or longer,depends on the order volume,the machine would be packed with the standard sea shipping package
Q6.What kinds of trade terms are available to you?
A. We could do FOB,CIF and C&F.
